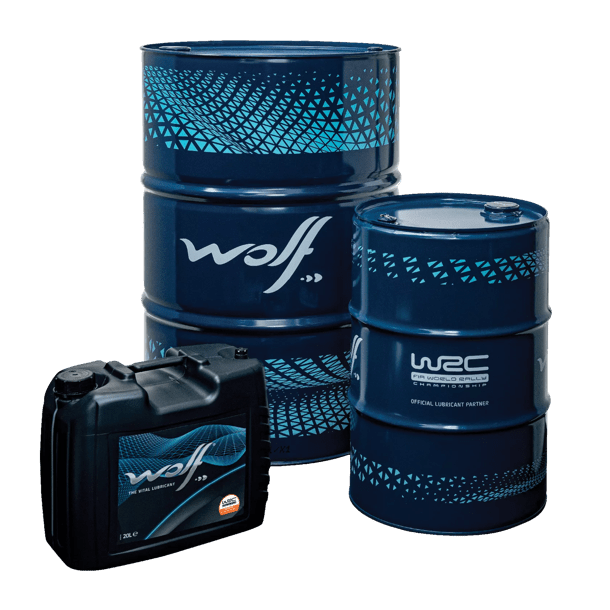

WOLF OFFICIALTECH ATF D/M ULV

This is a full synthetic lubricant based on carefully selected very highly refined base oils for automatic transmissions with a high viscosity index, excellent oxidation stability, excellent friction and anti-wear properties providing supreme fuel economy and meeting the requirements of most of the newest Ford and GM automatic transmissions.

This fluid is a new ultra-low viscosity ATF for MY 2017 on, GM Hydra-Matic 10L90 (10Lxx series) speed automatic transmissions used in the Yukon, Camaro ZL-1, Cadillac Corvette, Tahoe and other rear wheel drive models. It is used in the Ford Raptor and F-150, and known as the 10R80. Ford ATF equivalent known as Mercon ULV and WSS-M2C949-A.

This full synthetic, highest quality oil has been designed to provide exceptional protection and extends oil and automatic transmission life. Outstanding cold start properties, combined with strong resistance to degradation at elevated temperatures. It allows the best level of fuel economy.

Test	Method	Unit	Average Results
Density at 15°C	ASTM D4052	g/ml	0.847
Kinematic viscosity at 40°C	ASTM D445	mm²/s	19.8
Kinematic viscosity at 100°C	ASTM D445	mm²/s	4.55
Viscosity index	ASTM D2270		151
Pour point	ASTM D6892	°C	-51
Brookfield viscosity at -40°C	ASTM D2983	mPa.s	3700
Flash Point COC	ASTM D92	°C	182
Colour	VISUAL		RED
